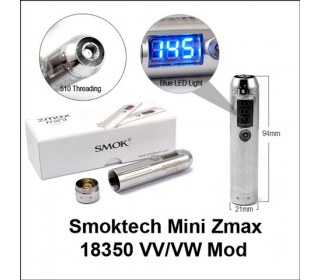

Zmax Mini VV/VW Mod from Smoktech

Compatibles batteries : 18350 (not protected)

We present you the latest Mod from Smoktech: The Mini Zmax V2. Built from stainless steel, it gives a great look that vapers appreciate. The small size makes it easy to carry it everywhere to enjoy all of its features, like setting the volts and watts.
You can adapt the power depending of your preference and you can display it on the blue LED screen. The eGo / 510 threading makes it possible to adapt it to most of the clearomizers.

Note that the Mini Zmax from smoktech works with 18350 800 mAh batteries which makes it possible to vape all day (batteries not delivered in this kit).

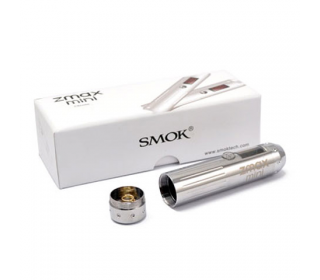

Zmax Mini kit from Smoktech include

• 1 Mini Zmax Mod : Smoktech
• 1 manual



This kit does not include the clearomizer and battery.

Features for the Mod mini Zmax from Smoktech

• Stainless steel
• Threading : eGo / 510
• Voltage : 3 to 6 Volts (increment of 0.1 V)
• Wattage : 3 to 15 Watts (increment of 0.5 W)
• Compatible battery : 18350
• Screen : blue LED
• Length : 94mm
• Diameter : 21 mm
• Weight : 80 g (without battery)



How to use it

The mini Zmax from smoktech has 8 menus. The menu 1 will show by default when you turn on the Mod.

Activate the battery

We advise you to completely charge your battery (not included in this kit) before you use it for the first time, to optimize the life span of your batteries.
To turn on the Mod, you simply need to press 3 times on the switch.

Menu 1

Once the battery turned on, the menu 1 will show up on the LED screen. This menu makes it possible to increase the volts by increment of 0.1 V and for the watts by increment of 0.5 W.

Menu 2

This second menu makes it possible to decrease the volts and watts.

Menu 3

This third menu makes it possible to put your Mod in “stand by” to make sure it is not active in unwanted time. Once in the third menu, wait a few seconds before selecting  “ S.of “.
To reuse the mod, click 3 times on the switch and go to the third menu and select “ S.on “.

Menu 4

This menu makes it possible to see how much power is left in the battery.

Menu 5

Here, you can choose what information will be shown on the screen each time you press on the button (power, capacity, coil’s values).

Menu 6

You can choose to show or hide the information on the LED screen.

Menu 7

Let you choose if you prefer to set the tension (volts) or the power (watts).
Select « Po » and you can set the power on menu 1 and 2.
Select « Vo » to set the tension and then go to menus 1 and 2.
